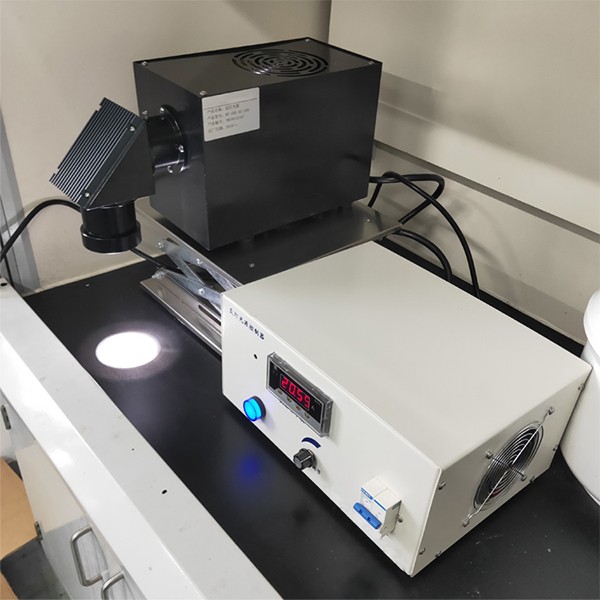

Xenon Lamp Light Source

Main features:

● Dedicated 300W xenon lamp steady current power supply.

● Lamp box and heat dissipation module.

● Steering head and light filtering device.

● Transmission-reflective filter (visible high reflection).

● Original imported PE300W xenon lamp.

● Equipped with a lifting device.

● The control cabinet has an external interface for optical feedback, which can add optical feedback circuits and increase the stability of light.

Technical parameters:

◆ Lamp power: 300W

◆ Power adjustment range: 100~300W continuously adjustable.

◆ Lamp life: not less than 1500H (full power operation).

◆ Current: 8-22A adjustable.

◆ Total optical power: 50W.

◆ Diameter of parallel light spot: 30-62mm (according to the radiation distance).

◆ Directional light divergence angle: 6 ° on average.

◆ Heat dissipation form: imported metal fan+metal heat dissipation module.

◆ Light collection form: ellipsoidal total reflection

◆ Optical window diameter: 24.0mm (circular spot)

◆ Working spot diameter: 30-62mm (round spot)

◆ Light output form: horizontal, vertical or arbitrary angle irradiation (free rotation along the optical axis)

◆ Vertical downward (also horizontal irradiation) after turning at 45 degrees of incidence

◆ Infrared transmission: transmittance not less than 80%, wavelength range: 800nm - 1100nm

◆ Visible reflection: reflectivity not less than 95%, wavelength range: 350nm - 780nm

◆ Filter placement device: Yes, with a diameter of 58mm.

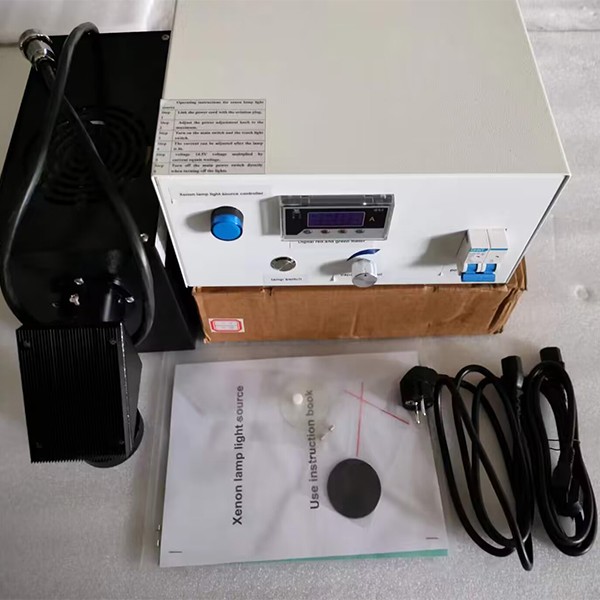

◆ Configuration: dedicated 300W xenon lamp steady current power supply light box, heat dissipation module, steering head and filter device, 1 transmissive reflective filter (visible high reflection)One ultraviolet filter, one visible light filter, one AM1.5G filter, and a lifting platform.
