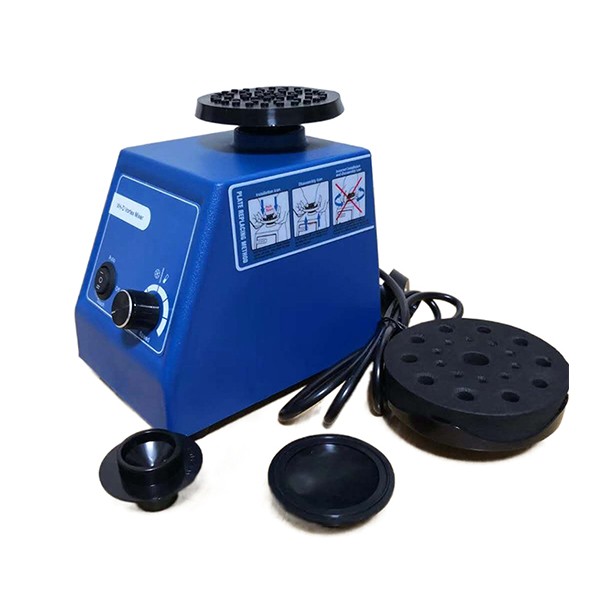

Vortex Mxer

Brand: SHLEEWEN

Model: XH-B/ XH-D/ XH-E

Model	XH-D
Operation method	Circling
Circling diameter	3.4mm
Rating speed	1000-2800rpm
Running mode	Continous,short
Working plate size	---
Permissible relative moisture	80%
Input Voltage	AC220V±10%(50/60Hz)
Output power	30W
Protective class	IP21
Permissible ambient temp.	5~50℃
Dimensions	180×120×180mm
Net.Weight	4.5Kg

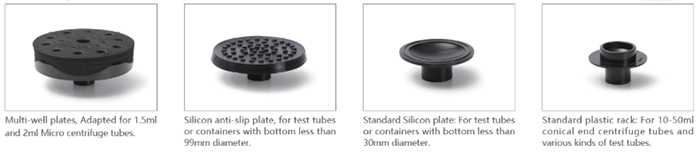

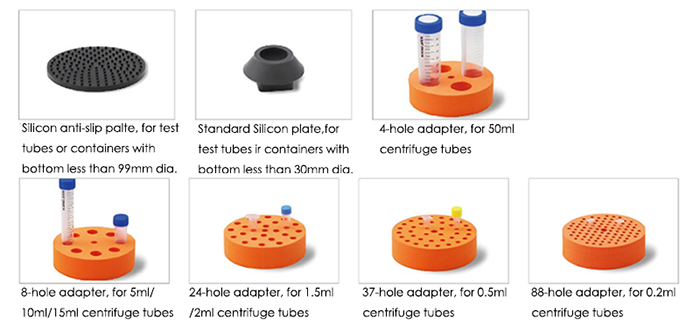

Available plates

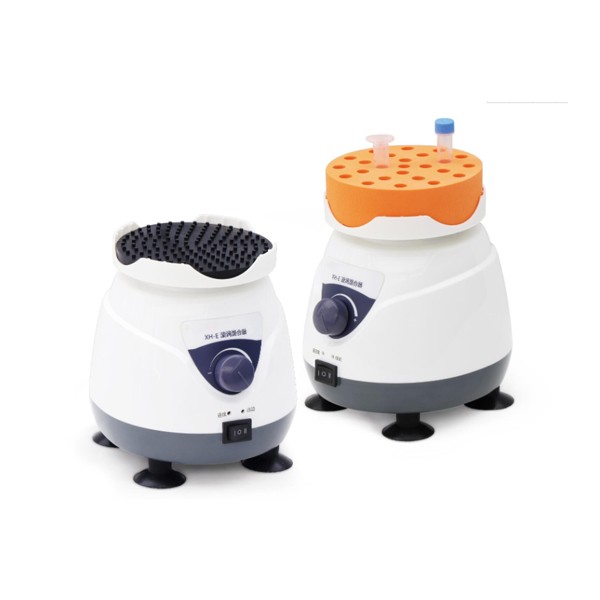

Model	XH-E
Operation method	Circling
Circling diameter	4.4mm
Rating speed	0-2800rpm
Running mode	Continous,short
Working plate size	---
Permissible relative moisture	80%
Input Voltage	AC220V±10%(50/60Hz)
Output power	60W
Protective class	IP21
Permissible ambient temp.	5~50℃
Dimensions	130×160×155mm
Net.Weight	2.5Kg
