Y-tube Olfactometer

Y-200 Model Insect Olfactometer

Introduce

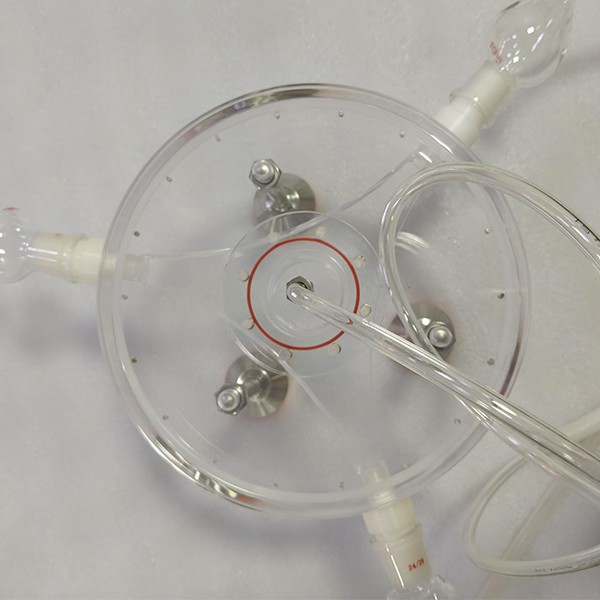

The activity room diameter: Dia.250mm and 3 Y-shaped channels; deep 15mm

1.The main body and upper cover are made of highdefinition transparent acrylic material.

2. The wormhole adopts superimposed self-priming design with specifications φ40mm, φ20mm;

3. Insect pear shaped collection bottles, 50ml and 100ml 3 bottles each, effectively prevent insects from returning to the observation room;

4. 3 odor bottles 250ml, suitable for liquid solid odor source and air humidification.

5. Flow control: three channels can control flow independently, flowmeter: 10~100ml/min or 30~300ml/min or others.

6. 3pcs 250ml drying towers equipped with 1kg activated carbon can effectively filter impurities in the air;

7. Oil free vacuum pump, voltage 220V, power ≥ 60W,no-load flow 20L/min, relative vacuum degree (Kpa) ≈ -80;

Configuration

1pc activity room, 50ml, 100ml pear shaped bottles each 3pcs , 250ml odor bottles 3pcs, 250ml drying towers 3pcs,Flow meters with support 3pcs, oil-free vacuum pump 1 Set, and 15m food grade connecting pipe

Y-400 Model Insect Olfactometer

Introduce

The activity room diameter: Dia.400mm and 3 Y-shaped channels; deep 30mm

1.The main body and upper cover are made of highdefinition transparent acrylic material.

2. The wormhole adopts superimposed self-priming design with specifications φ40mm, φ20mm;

3. Insect pear shaped collection bottles, 50ml and 100ml 3 bottles each, effectively prevent insects from returning to the observation room;

4. 3 odor bottles 250ml, suitable for liquid solid odor source and air humidification.

5. Flow control: three channels can control flow independently, flowmeter: 10~100ml/min or 30~300ml/min or others.

6. 3pcs 250ml drying towers equipped with 1kg activated carbon can effectively filter impurities in the air;

7. Oil free vacuum pump, voltage 220V, power ≥ 60W,no-load flow 20L/min, relative vacuum degree (Kpa) ≈ -80;

Configuration

1pc activity room, 50ml, 100ml pear shaped bottles each 3pcs , 250ml odor bottles 3pcs, 250ml drying towers 3pcs,Flow meters with support 3pcs, oil-free vacuum pump 1 Set, and 15m food grade connecting pipe
