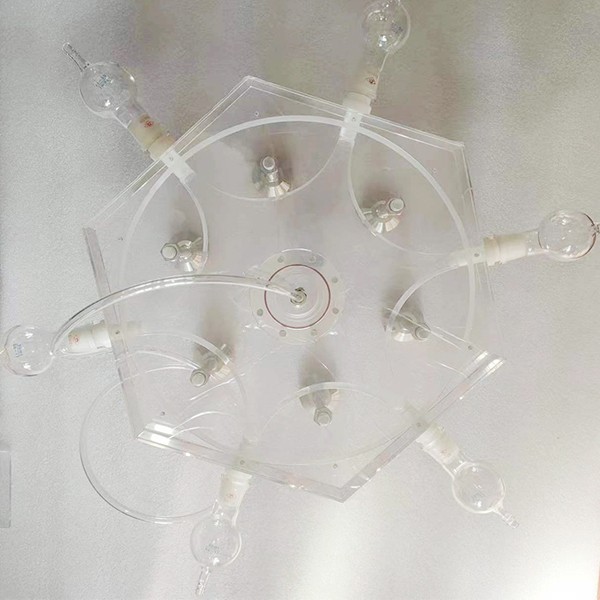

6 Choice Olfactometer

Introduce

The activity room diameter:Internal (dia.150mm /200mm/300mm or others) and 6 channels; deep 20mm

1.The main body is treflon material and upper cover : made of highdefinition transparent acrylic material,Optional Trifron material.

2. The wormhole adopts superimposed self-priming design with specifications φ40mm, φ20mm;

3. Insect pear shaped collection bottles, 50ml and 100ml,6 bottles each, effectively prevent insects from returning to the observation room;

4. 6 odor bottles 250ml/500ml, suitable for liquid solid odor source and air humidification.

5. Flow control: 6 channels can control flow independently, flowmeter: 10~100ml/min/30~300ml/min/50~500ml/min or others.

6. 6pcs 250ml/500ml drying towers equipped with 1kg activated carbon can effectively filter impurities in the air;

7. Oil free vacuum pump, voltage 220V, power ≥ 60W,no-load flow 20L/min, relative vacuum degree (Kpa) ≈ -80;

Configuration

1pc activity room, 50ml, 100ml pear shaped bottles each 6pcs , 250ml/500ml odor bottles 6pcs, 250ml/500ml drying towers 6pcs,

Flow meters with support 6pcs,oil-free vacuum pump 1 Set, and 20m food grade connecting pipe.  activated carbon 1kg/bag(customers purchase locally)
