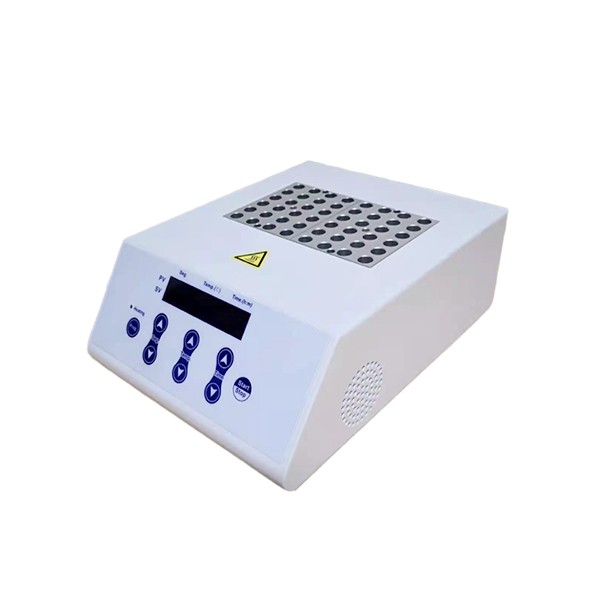

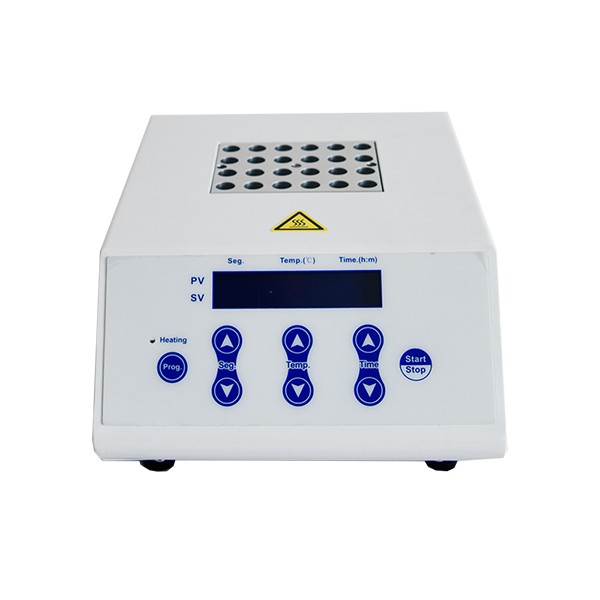

High Temperature Dry Bath

Temprature range

RT+5~150℃

RT+5~150℃

Temprature setting

1min-100h

1min-100h

Temprature stability@40℃

±0.3℃

±0.3℃

Display precision

0.1℃

0.1℃

Temp. rise time(20℃ to 100℃)

≤15min

≤15min

Size&Weight(H*W*D)

255×200×120（mm）-3.8kg

285×220×120（mm）-5.1kg

Power

AC220V,50Hz,200W

AC220V,50Hz,400W

Standard module

24 hole*1.5/2.0ml

48 hole*1.5/2.0ml

Optional module

01-16（except 17）

01-17(High temprature module*2）

Programming function

5groups

5groups

Air cooling function

Yes

Yes

01

6mm*42 hole

02

7mm*42 hole

03

10mm *20 hole

04

12mm *20 hole

05

13mm *20 hole

06

15.5mm *12 hole (fit in Sample Concentrator）

07

16.5mm *12 hole (fit in Sample Concentrator）

08

19.5mm *12 hole (fit in Sample Concentrator）

10

26.5mm *6 hole

11

28.5mm *4 hole

12

40.5mm *2 hole

13

0.5ml*42 hole

14

1.5ml*24 hole

15

2.0ml*24 hole

16

0.2ml*48 hole

17

0.2ml*96 hole( fit in Double module high tempratrue dry bath）

18

10.5mm *12 hole (fit in Sample Concentrator）
