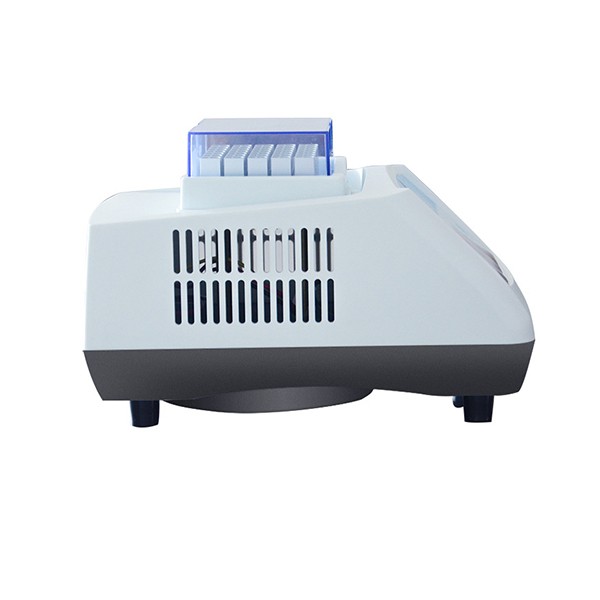

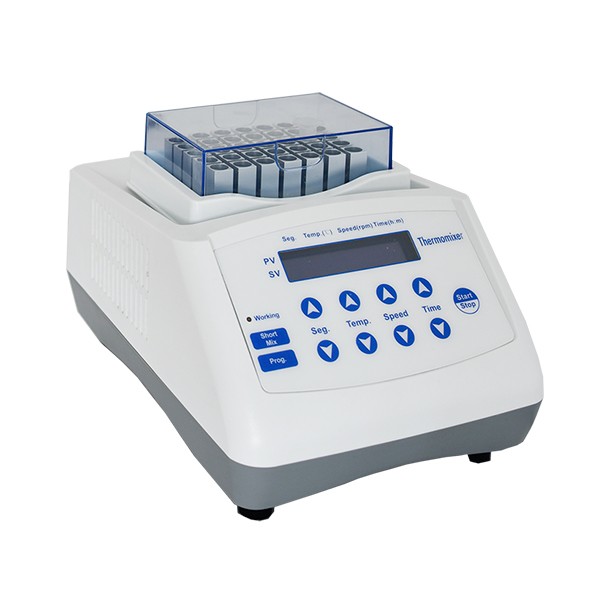

Thermo_Shaker Dry Bath

Model：MS-100/MSC-100A cooling

Brand：SHLEEWEN

Heater and Shaker type

Features

1. LCD display. It easy to setup and use

2. Simultaneous display of set and actual time, temprature

3. As it is equipped with various optional blocks, the instrument can adapt to different tubes & wells to cope with experimental needs.

It is easy to replace the metal blocks and is very simple to clean and sterilize.

4. Reliable design with inner extra temperature protection

5. Heave of the block makes block change easy and convenient

6. Temperature deflection adjusting meet with different demands

7. Microprocessor controlled incubation time and temperature.

8. Beep-signal / Stop after program completion

Specification

Model Number	MS-100(Heated thermomixer）	MSC-100(Heating and cooling thermomixer）
Temprature range	RT+5℃~100℃	0℃~100℃(RT≤20℃ )
Temprature setting	1min-100h	1min-100h
Temprature stability	±0.5℃	±0.5℃
Display precision	±0.1℃	±0.1℃
Shake speed	200~1800rpm	200~1800rpm
Shake speed	2-3mm	2-3mm
Heating time	≤15min (25 to 100℃)	≤15min (25 to 100℃)
Cooling time	NO	≤25min(20℃ to 0℃) (RT=20℃)
Size&Weight(HWD)	270×190×190（mm）-8kg	270×190×190（mm）-9.5kg
Power	AC220V,50Hz,200W	AC220V/120V,50/60Hz,250W
Standard module	352.0ml or 351.5ml centrifuge tube	（C or D）:352.0ml or 351.5mlcentrifuge tube
Optional module	A,B,C,D,E,F,G,H,J,K,L,M	A,B,C,D,E,F,G,H,J,K,L,M
Programming function	5groups	5groups
Air cooling function		Yes

Optional Module

4 Type Optional Module	REMARKS
A	96*0.2ml Standard module 100℃（with hole）
B	54*0.5ml centrifuge tube 100℃
C	35*1.5ml centrifuge tube 100℃
D	35*2.0ml centrifuge tube 100℃
E	150.5ml+201.5ml centrifuge tube 100℃
F	24* ≤￠12mm tube 100℃
G	320.2ml+251.5ml centrifuge tube 100℃
H	320.2ml+100.5ml+15*1.5ml centrifuge tube 100℃
J	96*0.2ml microwell plate(ELISA Plate) 100℃（module plate）
K	24*5ml centrifuge tube 100℃
L	12*15ml (max speed 600rpm) 100℃
M	6*50ml (max speed 600rpm) 100℃
