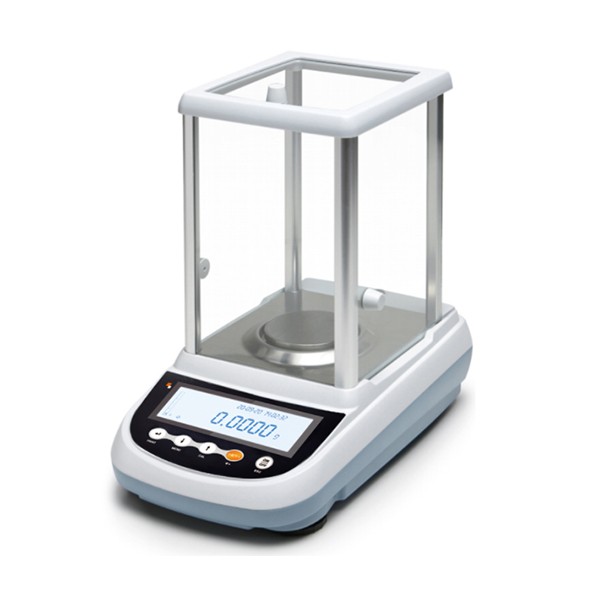

0.1mg/0.01mg Analytical Balance

Function:

★Recipe database: 99 datas can be stored

★Automatic internal calibration

★Tare/counting/percentage test/animal weighing

★Baud rate is adjustable/ Density function

★unit conversion (g/mg/ct/oz)...

★Multi-Language : English/ German/French/Italian/

Spanish/Portuguese

★Keep weight values in GLP/ISO format,Includes date, time,

and serial number

★Plastic protection cover for keypad

★Sensitivity/speed adjustable

★Overload alarm/fault alarm/level indicator

Optional accessories:

ION-A15 Static Eliminator

Balance plate system. USB version (BL0329) or Bluetooth version (BL0330)

DPP-250-BT Bluetooth printer for system (AC013)

TLP-50 serial printer with date/time (C054)

DPP-250 serial printer (AC007)

STAT serial printer with statistical function (AC022)

Alphanumeric external keyboard (AC005)

Serial to USB converter (E1002)

Serial cable for serial output to printer or computer (E743)

Factory calibration certificate (BL0333)

Technical data:

Range drift (+10… +30°C): +/– 2ppm/°C

Dimensions: length×width×height (mm): 345×215×345

Weighing room size: length × width × height (mm): 162 × 171 × 225

External electronic box size: length × width × height (mm): 175 × 105 × 50 (mm), weight 500 grams

power supply 110-230 Vac, 50/60 Hz: output 24 V / 500 mA / 13 VA

Net weight: 7 kg

FA（SEM）Series
Model	FA1265SEM	FA2285SEM	FA22105SEM			FA125SEM-ION	FA165SEM-ION	FA205SEM-ION
Capacity(g)	62g/120g	82g/220g	102g/220g			122g	162g	210g
Resolution(g)	0.01mg/0.1mg					0.01mg
Min weighing(g)	60mg			100mg		100mg
Stable Time	≤6s
Display	LCD（white back light with black font）
Pan size	Φ80mm
Operation temp	5-25℃ 20-80% humidity
Repeat ability	0.03mg/0.1mg	0.05mg/0.1mg			0.05mg	0.05mg
Liner	±0.08/±0.2mg	±0.1/ ±0.2mg			±0.1mg	±0.1mg
Draft shield size	152mm×160mm×225mm
Cal.weight	Internal Calibration
Option	RS232C & RS485、Printer
Dimension	345×215×345mm
G.N . weight	8.25kg/5.8kg					8.3kg/5.85kg
IONISER	Option					Standard
Language	Italian/English/Portugues/Deutsch/France/Espanol
Packing Size	510x400x620mm(No pallet)
Power Supply	110-230V 50/60Hz Out DC 12V 1A
