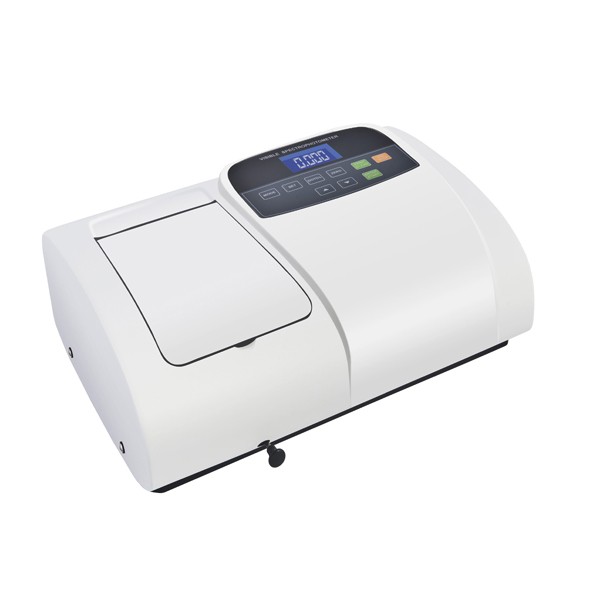

V-5100 Visible Spectrophotometer

 Optical System

Single beam, Grating 1200 lines/mm

 Wavelength Range

325-1000nm

 Bandwidth

4nm(optional 2nm)

 Wavelength Accuracy

±2nm

 Wavelength Repeatability

0.5nm

 Wavelength Setting

Auto

 Photometric Accuracy

±0.5%T

 Photometric Repeatability

≤0.2%T

Photometric Range

-0.3-3A,0-200%T,0-9999C

 Photometric  Mode

T,A,C,F

 Stray Light

≤0.1%T

 Stability

± 0.002A/h @ 500nm

 Display

128*64  LCD

 Detector

Silicon Photodiode

 Light Source

Tungsten  Lamp

 Output

USB Port & Parallel Port(Printer)

 Power Requirements

AC 85~250V

 Dimension

420*280*180mm

 Weight

11kg

1

Spectrophotometer

1

set

2

1cm   Glass cuvette

4

pcs

3

Power   cord

1

pcs

4

User’s   Manual

1

pcs

5

Black   block

1

pcs

6

Dust   Cover

1

pcs
