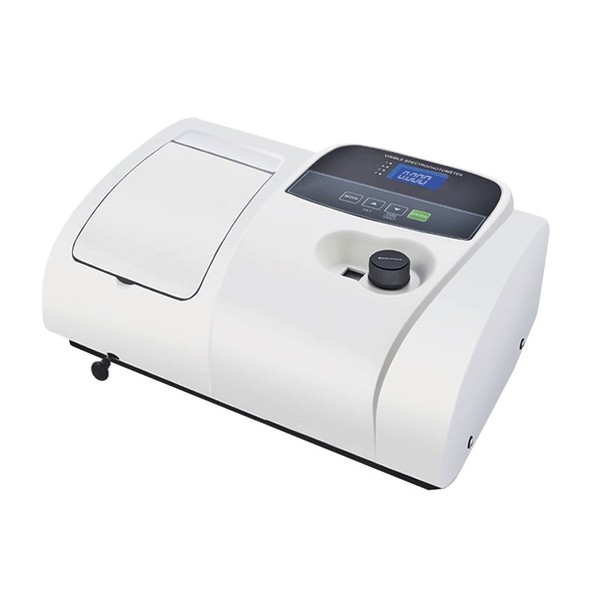

V-5000 Visible Spectrophotometer

Optical System

Single Beam, Grating 1200 lines/mm

Wavelength Range

325-1000nm

Spectral Bandwidth

4nm

Wavelength Accuracy

±2nm

Wavelength Repeatability

1nm

Photometric Accuracy

±0.5%T

Photometric Repeatability

≤0.2%T

Photometric Range

-0.3-3A,0-200%T,0-9999C

Photometric Mode

T,  A,  C,  F

Stray Light

≤0.2%T

Stability

±0.002A/h @ 500nm

Display

LCD

Detector

Silicon Photodiode

Output

 USB Port   & Parallel Port(Printer)

Light Source

Tungsten Halogen Lamp

Power Requirements

AC 85~250V

Dimension

420*280*180mm

Weight

8kg

1

Spectrophotometer

1

set

2

1cm   Glass cuvette

4

pcs

3

Power   cord

1

pcs

4

User’s   Manual

1

pcs

5

Black   block

1

pcs

6

Dust   Cover

1

pcs
