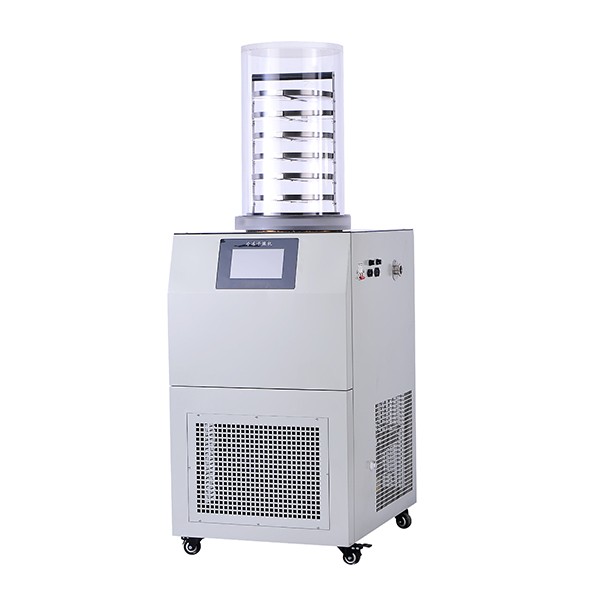

LGJ-18 Vacuum Freeze Dryer

Feature

-Desktop design, compact appearance, small footprint, easy to carry.

-The cold trap temperature can be preset, and the vacuum pump can be started when it is lower than the preset temperature, effectively protecting the vacuum pump.

-The original imported Secop compressor is used for refrigeration, and the condensing temperature can be as low as -60℃.

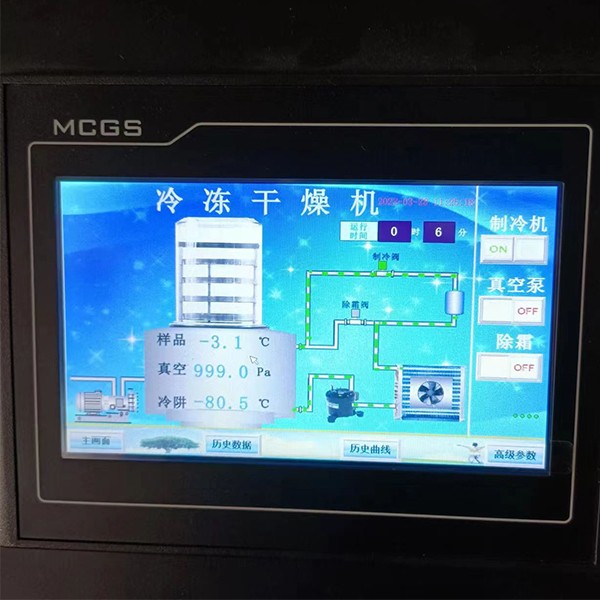

-Touch LCD screen, real-time record and display of cold trap temperature, sample temperature, vacuum degree, data can be exported via USB.

-The cold trap is all stainless steel with a built-in condensing coil, which has a good water trapping effect.

-Equipped with an inflation valve, which can be filled with dry nitrogen or inert gas.

-It can record the single working time and the total running time of the machine.

-Highly transparent anti-corrosion glass cover, the top can be opened for easy sampling.

Technical Parameters

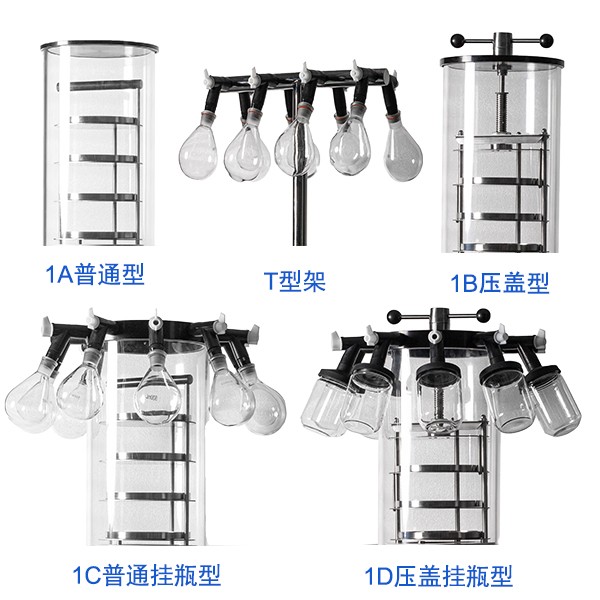

Remark: Including 2XZ-2 vacuum pump 1Set, Optional glass bottles: 100/250/500/1000ml. wide-mouth bottle 500ml/1000ml

Optional: (1) imported vacuum pump (2) oil mist filter (3) anti-return device

FD-80 Series: Condenser extreme temperature reach to around -80°C

FD-4/8: Mid-sized pilot production vacuum freeze dryers.
