-50 Vacuum Freeze Dryer

Brand: SHLEEWEN
Origin: China
Model: FD-1-50 Series

Feature

-Desktop design, compact appearance, small footprint, easy to carry.

-The cold trap temperature can be preset, and the vacuum pump can be started when it is lower than the preset temperature, effectively protecting the vacuum pump.

-The original imported Secop compressor is used for refrigeration, and the condensing temperature can be as low as -60℃.

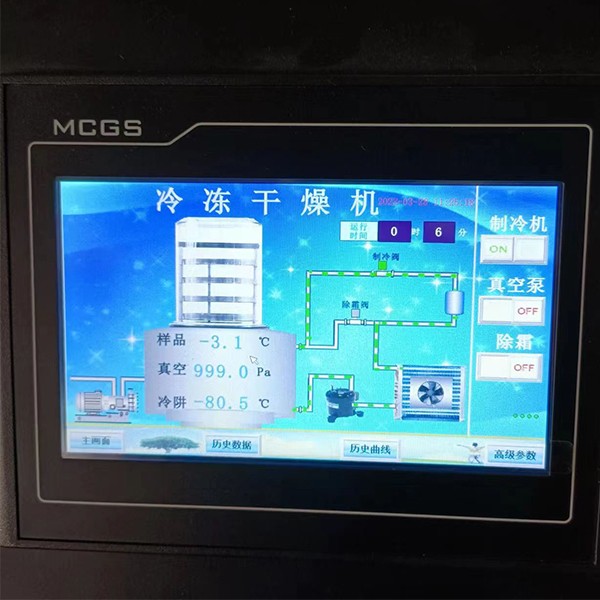

-Touch LCD screen, real-time record and display of cold trap temperature, sample temperature, vacuum degree, data can be exported via USB.

-The cold trap is all stainless steel with a built-in condensing coil, which has a good water trapping effect.

-Equipped with an inflation valve, which can be filled with dry nitrogen or inert gas.

-It can record the single working time and the total running time of the machine.

-Highly transparent anti-corrosion glass cover, the top can be opened for easy sampling.

Technical Parameters

Model	FD-1A-50	FD-1B-50	FD-1C-50	FD-1D-50	FD-1E-50	FD-1F-50
Type	Ordinary	Top-Press φ12mm560pcs φ16mm285pcs Φ22mm*165pcs	Bottles 8pcs	Mixed φ12mm560pcs φ16mm285pcs Φ22mm*165pcs	T frame 24pcs Ampoule	T Frame 8pcs bottle
Lyophilized Area	0.12M²	0.08M²	0.12M²	0.12M²	/	/
Tray Size	φ200*4	Φ180*3	φ200*4	Φ180*3	/	/
Material tray spacing	70mm	80mm	70mm	80mm	/	/
Condensing Temp.	-50(limit -60℃)
Vacuum	＜10Pa
Sublimation speed	3kg/24hr
Cold trap size	φ240*150mm
Power	900W
Host Size	W400×D620×H400+520mm(Drying room)
Host Weight	36Kg
