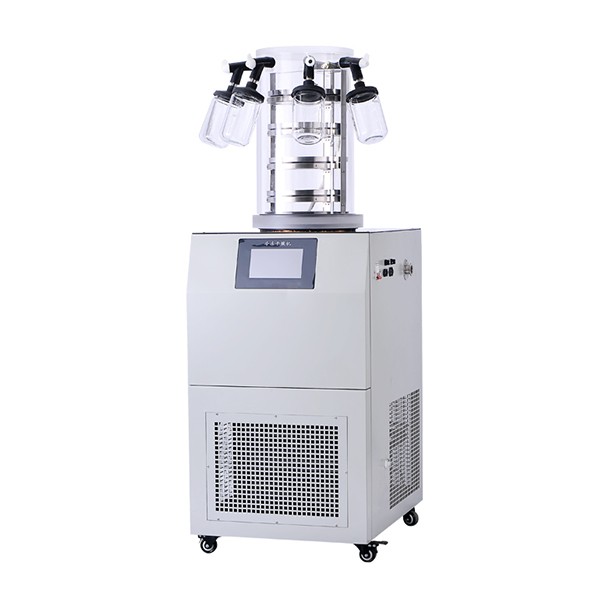

Heating Freeze Drying Machine

Brand: SHLEEWEN
Model:FD-2A Series
Origin: China

Model	FD-2A	FD-2B	FD-2C	FD-2D
Type	Ordinary	Top-Press φ12mm785pcs φ16mm455pcs φ22mm*235pcs	Bottles 8pcs	Mixed φ12mm785pcs φ16mm455pcs φ22mm*235pcs
Condensing Temp.	-80℃	-80℃	-80℃	-80℃
Vacuum	＜10 Pa	＜10 Pa	＜10 Pa	＜10 Pa
Lyophilized Area M2	0.18	0.12	0.18	0.12
Packing materials	2L	1.2L	2 L	1.2 L
Sublimation speed	6Kg/24h	6Kg/24h	6Kg/24h	6Kg/24h
Shelf Heating	RT~60℃	RT~60℃	RT~60℃	RT~60℃
Cold trap size	Φ280mm*420mm	Φ280mm*420mm	Φ280mm*420mm	Φ280mm*420mm
Tray Size	Φ240mm*4	Φ225mm*3	Φ240mm*4	Φ225mm*3
Sample bottles	/	/	8	8
Power	220V/50Hz/1800W
Host Size	540×720×960mm3
Host Weight	95Kg
