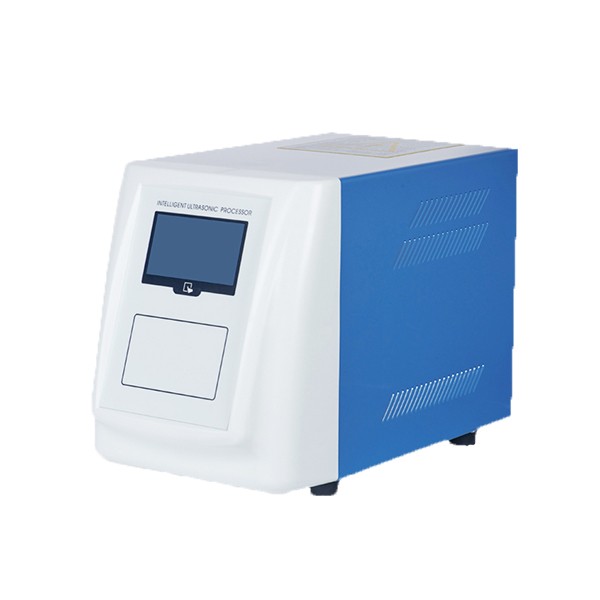

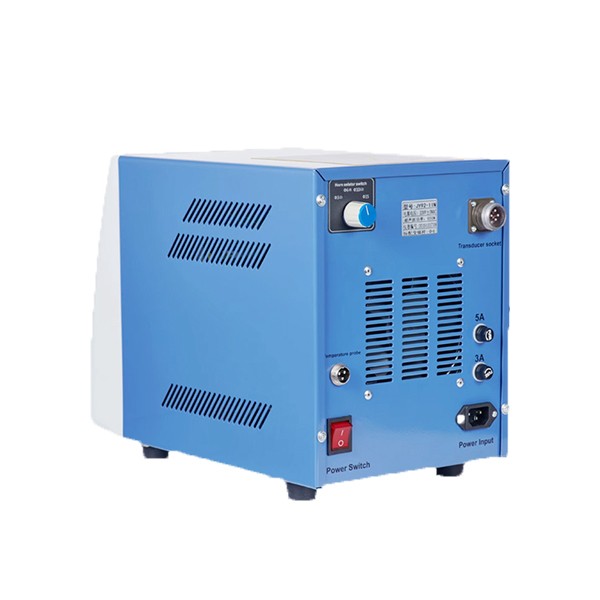

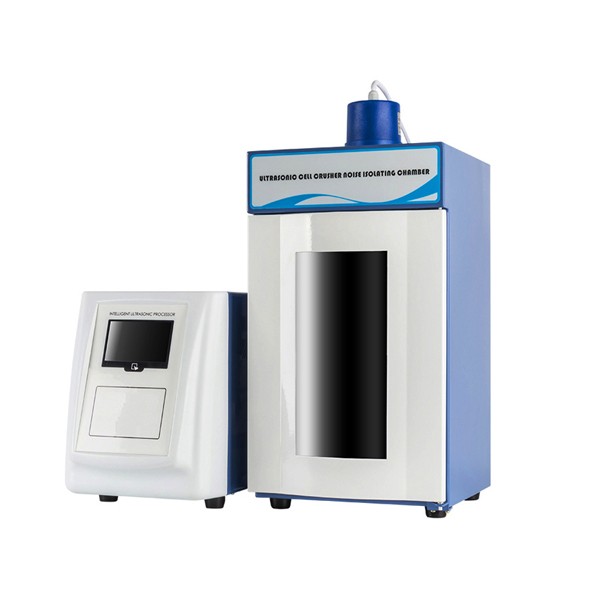

Ultrasonic Homogeneous Emulsifier

Power   ratio

5~500W   adjustable

10-1000W (Adjustable)

15-1500W (Adjustable)

1000-3000W   Manual adjustable

Crushing   capacity

0.1-400ML(according   to the horn)

0.1-700ML(need   to match the corresponding horn)

1-1500ML(need   to match the corresponding horn)

500-5000ML(need   to match the corresponding horn)

Display   method

4.3   inch touch screen

Single   ultrasound time

0.1-99.9S

Single   gap time

0.1-99.9S

Total   time (ultrasound + gap)

1-99H59M59S

Frequency   Range

20-25KHz

19.5-20.5KHz

Temperature   control range

0-100℃(option Low temperature thermostat)

Alarm   function

Time,   overload, no load, over temperature

Random horm

Φ6(mm)

Φ6(mm)

Φ22(mm)

Φ40   Lengthened(mm)

Optional   horn

Φ2,3,10,12(mm)

Φ2,3,8,10,12,15(mm)

Φ3,6,10,15,20,25(mm)

Φ20,35,38,40 Lengthened,50(mm)

Data   storage

20 groups

power   supply

220V/110V/   50Hz/60HZ

Net Size   (L*W*H)

410*225*290(mm)

510*225*290(mm)

Net   Weight Controller

12kg

16kg

17kg

Gross   Weight Controller

16kg

19kg

21kg

Packaging   Size

470*305*430(mm)

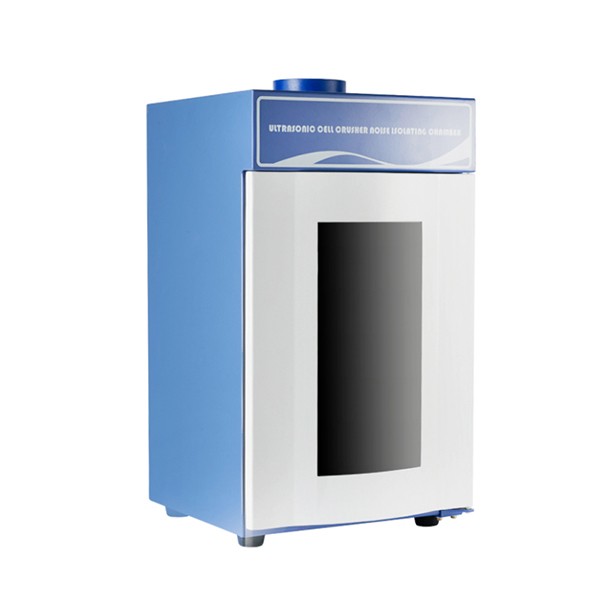

Soundproof   box gross weight

10kg

15kg

packing   of soundproof box

(L * W *H)

350*350*550(mm)

430*415*730(mm)

Voice   alarm and prompt function

Yes

Continuous   ultrasound function

No
